Reagent cleaning of diesel fuel using AVS 150  vortex-layer device and UVR fuel, oil cleaning system



GlobeCore engineers have developed a new system for desulphurization of diesel fuel and here, we will show you - how to reduce the sulfur content in diesel fuel – using purification  reagents.



Flow chart of cleaning diesel fuel of sulfur consists of a tank with a volume of 1m3, a pump for pumping fuel from the tank into AVS-150 vortex-layer device  with a measuring pump for supplying a reagent, a dispenser to supply the ferromagnetic particles into the working chamber of AVS 150  vortex-layer and  UVR vacuum regeneration unit.

We pour diesel fuel into the tank with a volume of 1m3.  It is pumped into the working chamber of AVS 150, The reagent is fed at the same time from a 30lit barrel. The treatment in AVS lasts fractions of a second. Steel ferromagnetic particles  help to mix the reagent with diesel fuel, The ferromagnetic particles wear of during the operation at  5g per 1 hour  or 0,01gr per liter of diesel fuel. Then the solution is fed into UVR where it passes through the sorbent which purifies it from sulfur  sediment. Ferromagnetic particles  are reloaded automatically by a dispenser.

The productivity of the unit is 0,5m3 / hour.

The effectiveness of reagent cleaning depends on the intensity of mixing the components into an emulsion. Then the emulsion needs time to separate with precipitation of reagents.

We use the vortex layer device AVS-150 to amplify the above mentioned process. It provides the intensive mixing of diesel fuel with reagent, despite high temperatures and low concentrations of  solutions.

First, the fuel is pre-heated to 95 ° C so it is not necessary to heat it during the process - as the temperature in the unit’s working chamber is 100 to 150 ° C

.  Then the precipitation and filtration is done in the UVR- fuel, oil cleaning system.

Technical characteristics of diesel fuel, according to the quality passport:

Sulphur content, mg / kg

373

Flash point at  °С

75

Fuel properties

Not more than 25,3% in volumes evaporates at 250°С

Not more than 93,3% in volume evaporates at 350 °С

95% in volume distills at , 354,2°С



         Technical characteristics of diesel fuel after cleaning

Sulphur content, mg / kg

8

Flash point at, °С

76

Fuel properties

Not more than 25,3% in volumes evaporates at 250°С

Not more than 93,3% in volume evaporates at 350 °С

95% in volume distills at  354,8°С



Sulphur content may be determined according to the Test method of ISO 20847: 2009

The obtained fuel sample matches European emission fuel standards -Euro 5

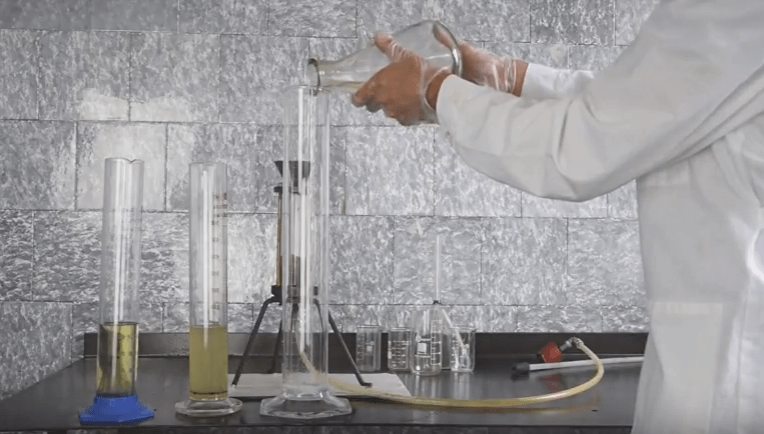

We will show you the sample after mixing it with reagent in our AVS-150 vortex-layer device, and then the sample after purification with sorbent on our UVR laboratory filtration unit.
